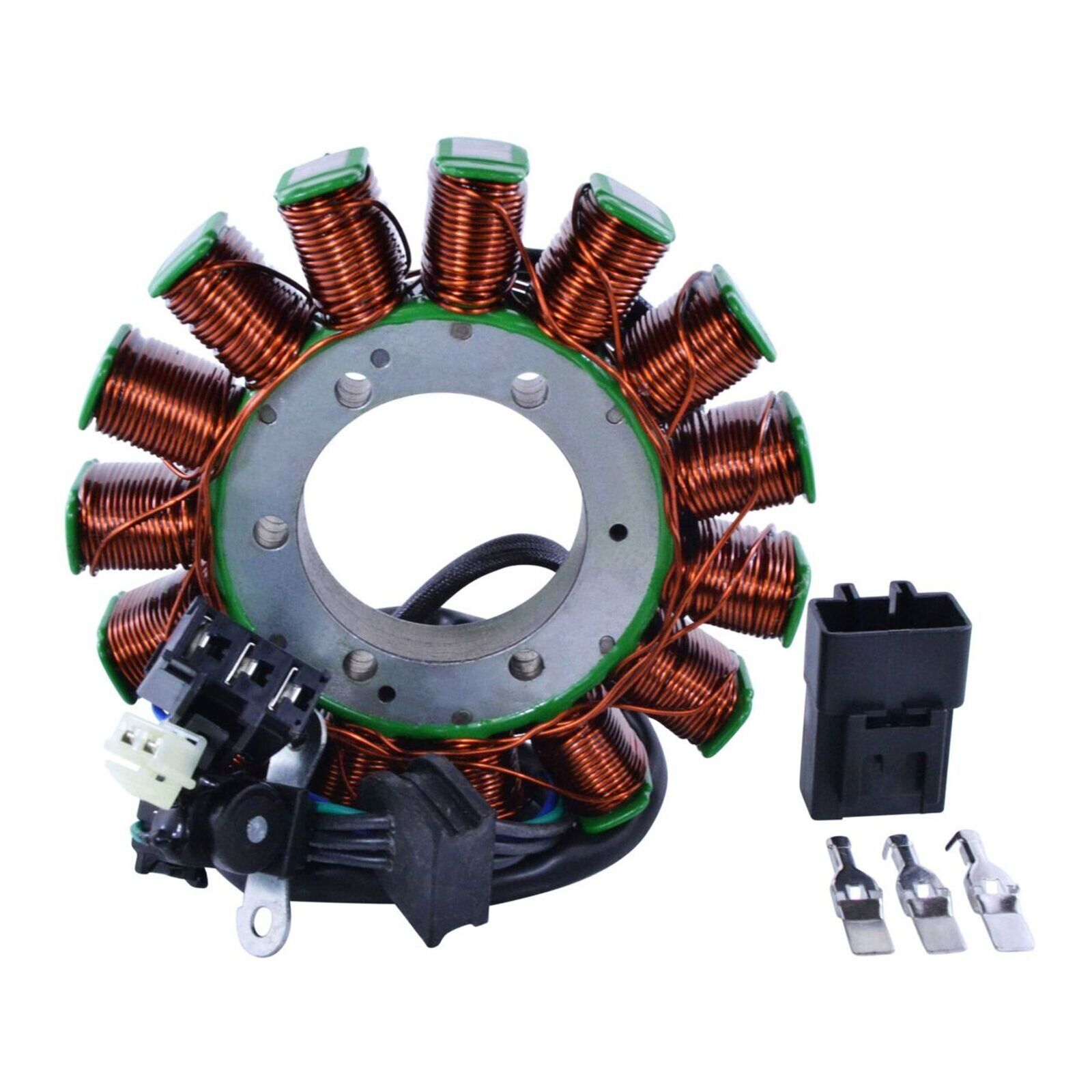

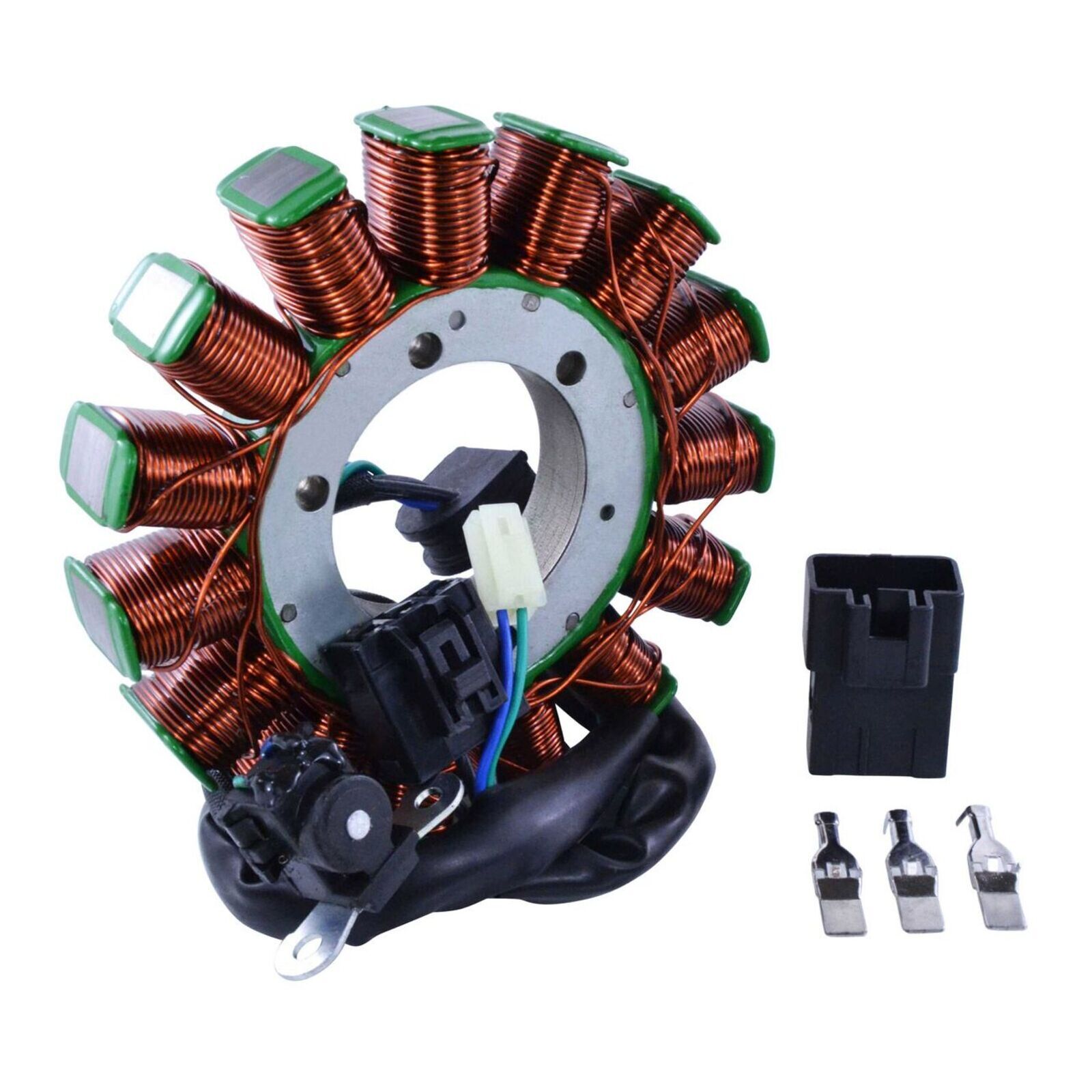

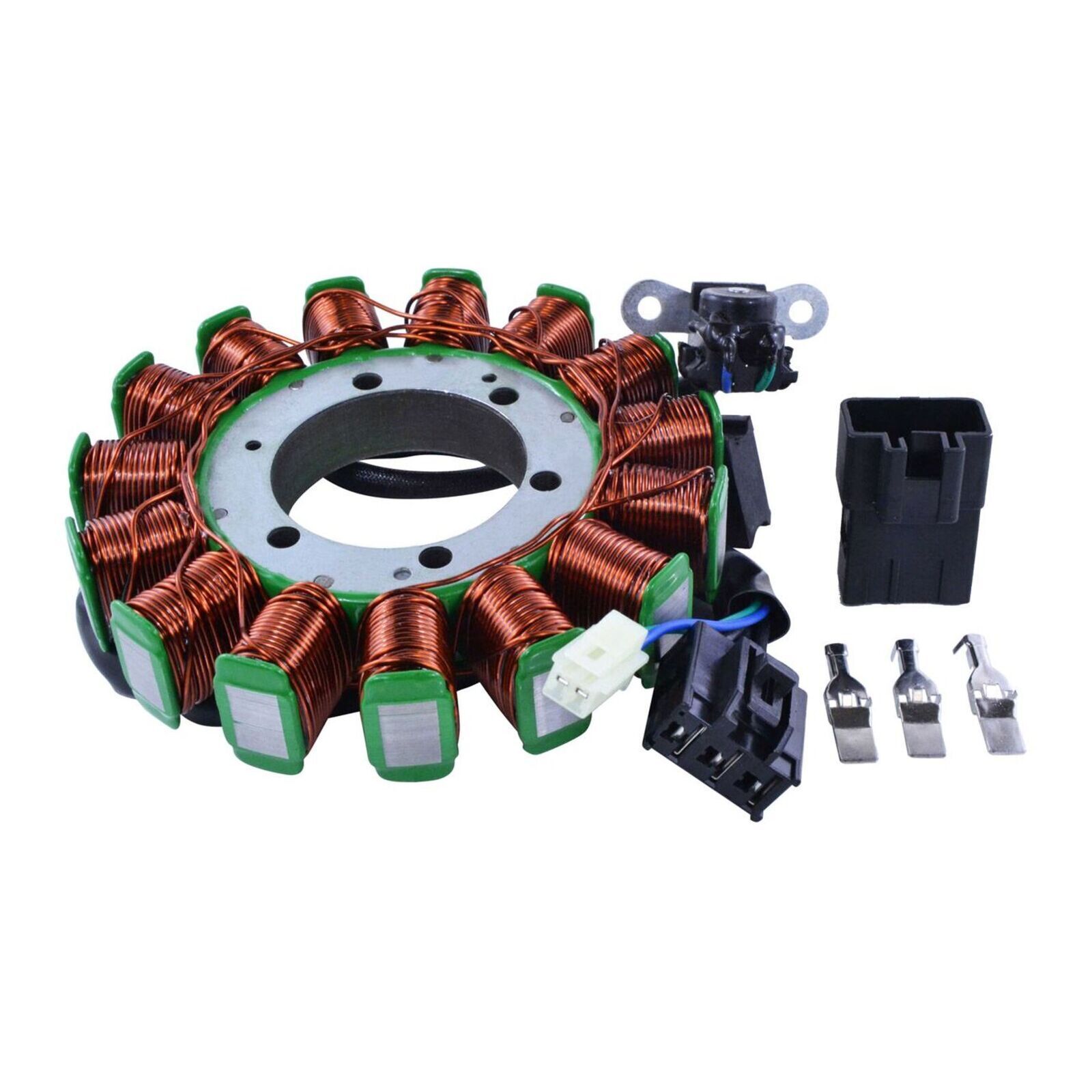

Brand new aftermarket generator stator. RM has even included the opposite connector (main harness side) which are a major cause for repetitive electrical issues.

• Direct replacement to your original unit.
• Plug-and-play direct fit easy installation.
• Highest-grade lamination materials.
• Highest grade copper windings resistant to 200 degrees Celsius.

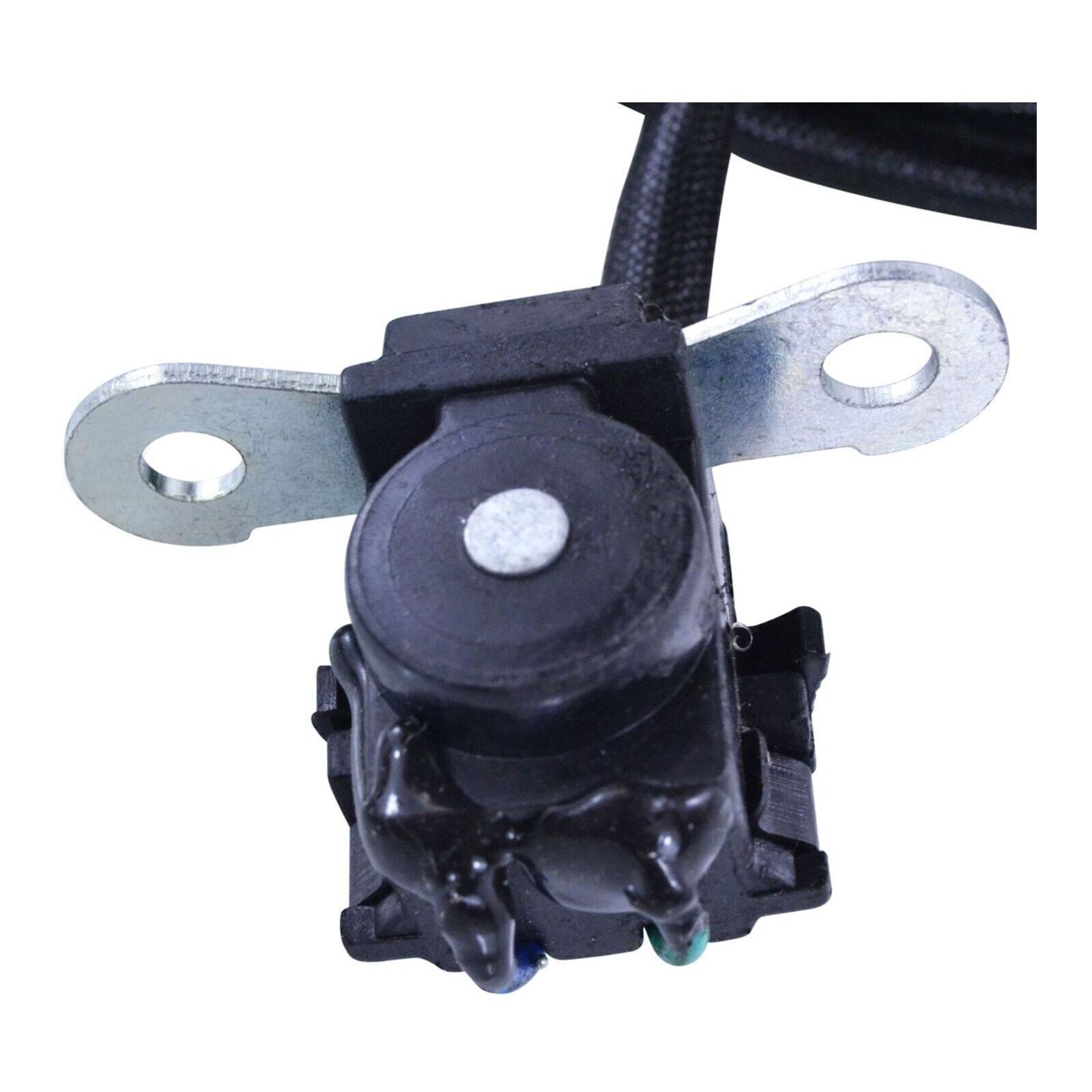

• Pick up pulsar coil included.
• Connector included.

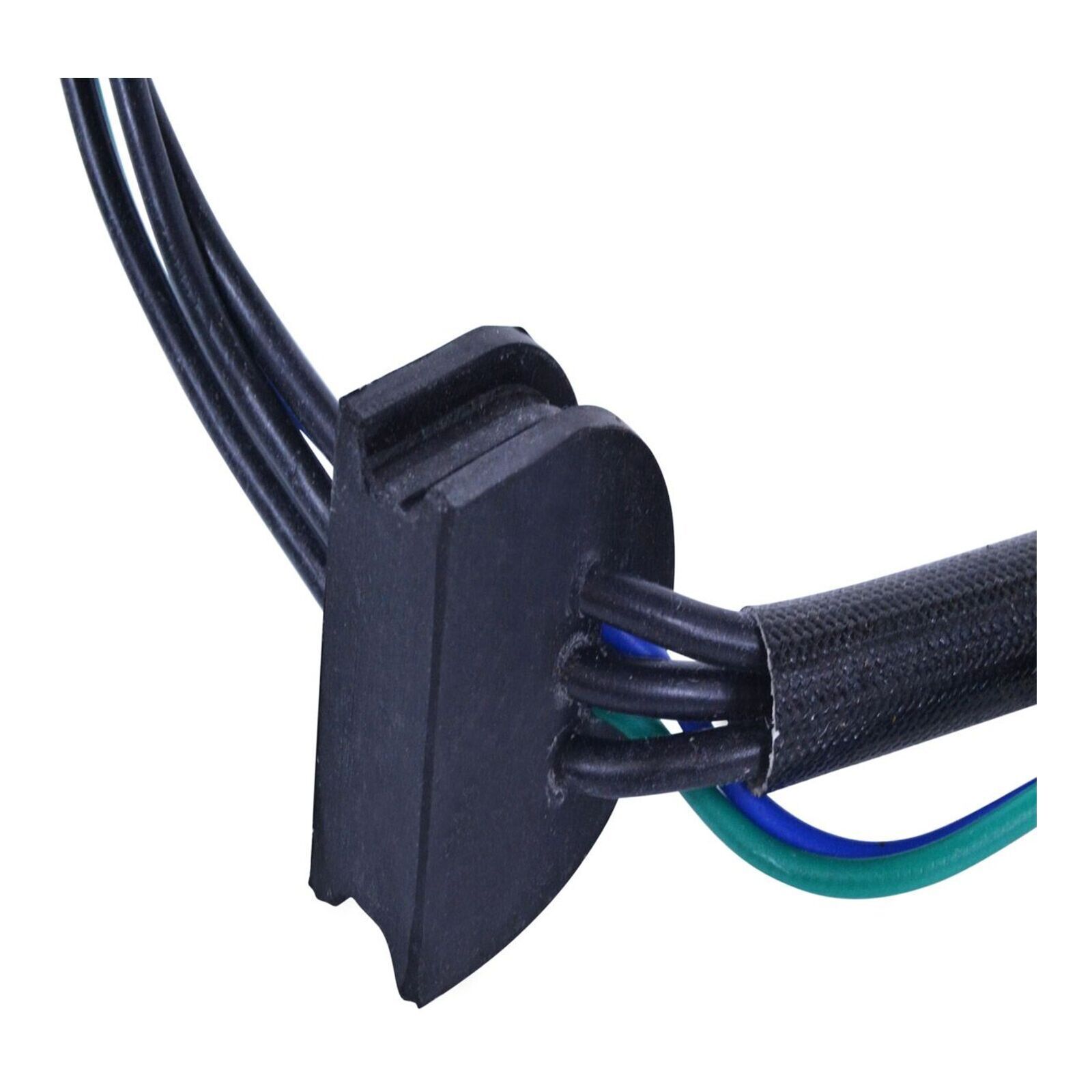

• Rubber grommet included.
• All products shipped are tested.

Dimensions:

• Interio r diameter: 54 mm
• Exterior diameter: 140 mm
• Thickness: 18 mm
• Length of wires stator to grommet: 150 mm
• Length of wires grommet to plug: 420 mm
• Length of pickup coil's wire to grommet: 240 mm

Other Specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5

Wire to Wire Resistance:

• Alternator: Black to Black = 0.5 ohms ±20%
• Pickup: Blue to Green = 239 ohms ±20%
