RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles ATV SxS UTV snowmobiles and PWC. Through unrelenting quality control we ensure that each component meets or exceeds the OEM specs. With over 25 product families rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play direct fit easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

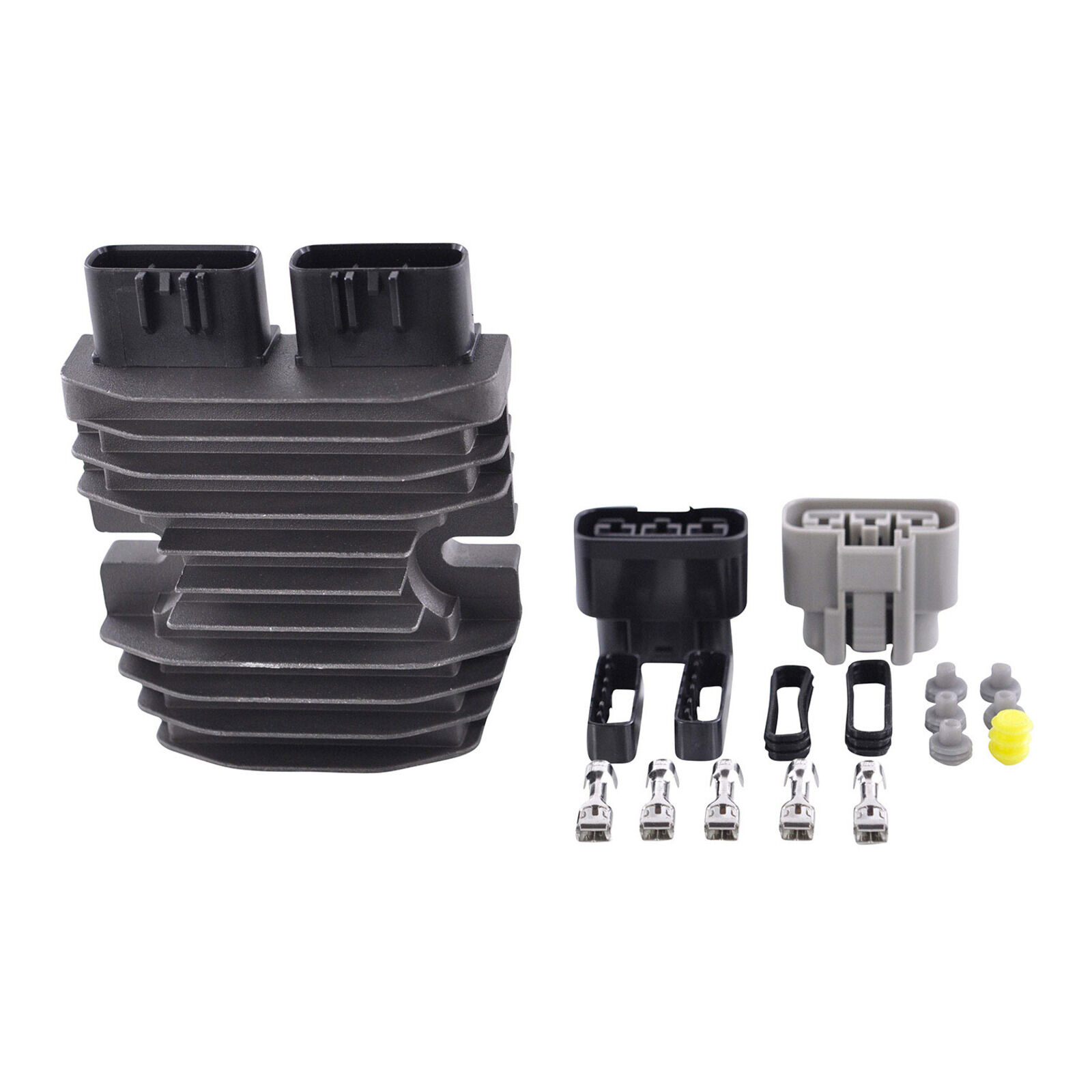

RM STATOR has even included the opposite connector (main harness side) as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

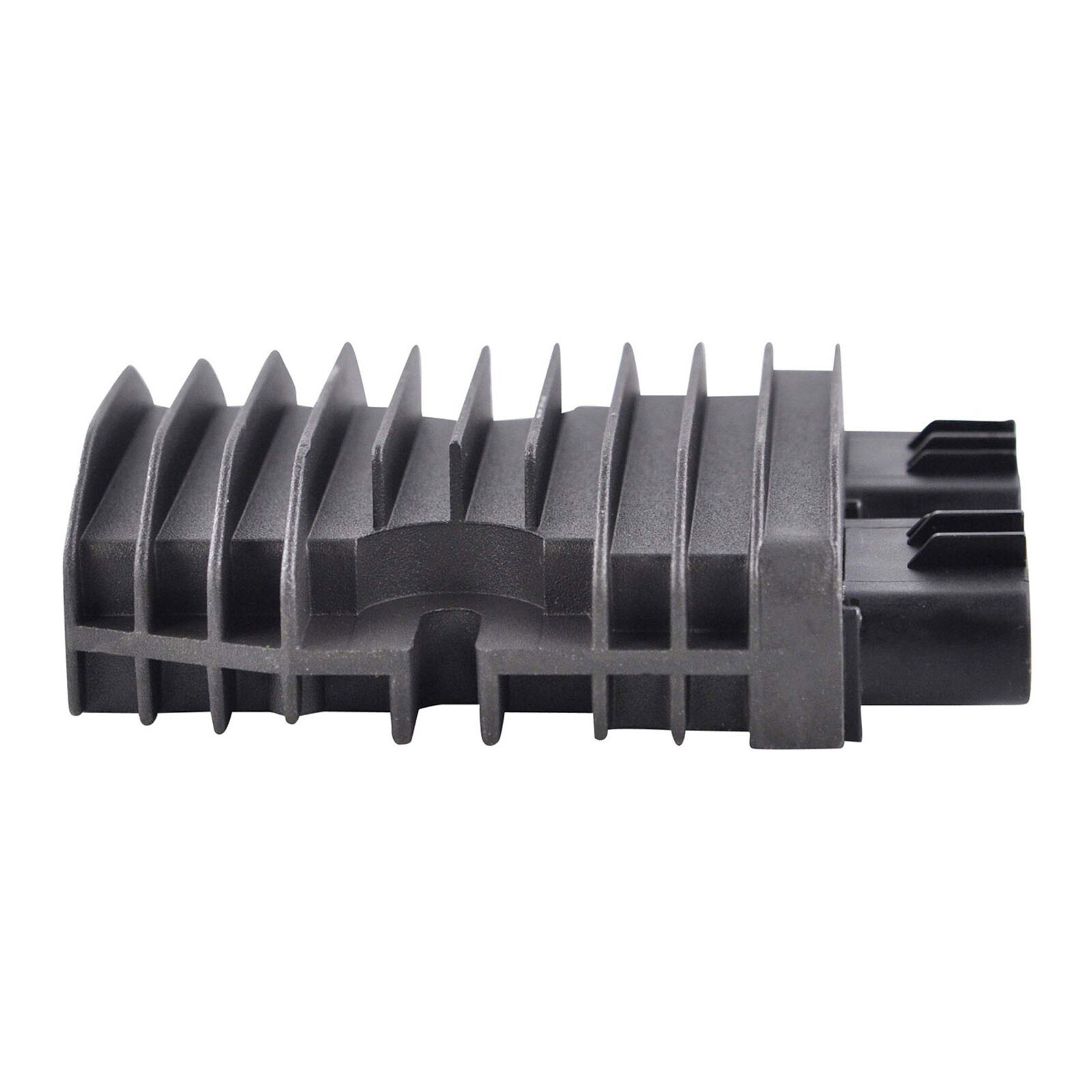

Dimensions:

• Width: 30mm
• Length: 95 mm
• Height: 110 mm
• Fixation holes center to center:78 mm

Other specifications :

• Number of plugs: 2
• Number of pins: 5

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above will void any warranty.
4. There are multiple regulators possible for some Triumph models. Please take a look at the list below to see if your triumph model is there and if so if it's the right part:
• Bonneville from 2017 to 2020 with a VIN LOWER than 513325. If you have a HIGHER VIN you should look for parts # RM30
