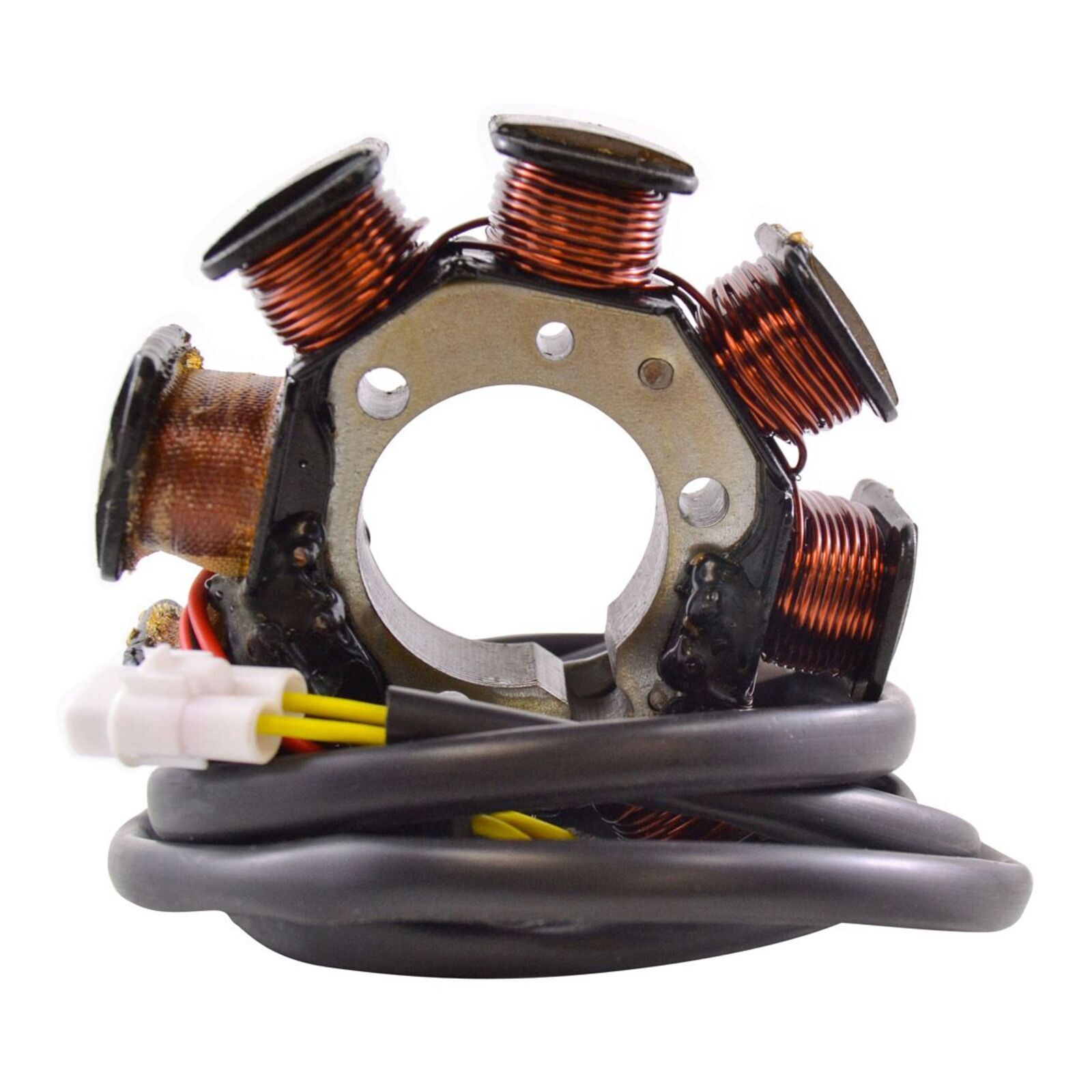

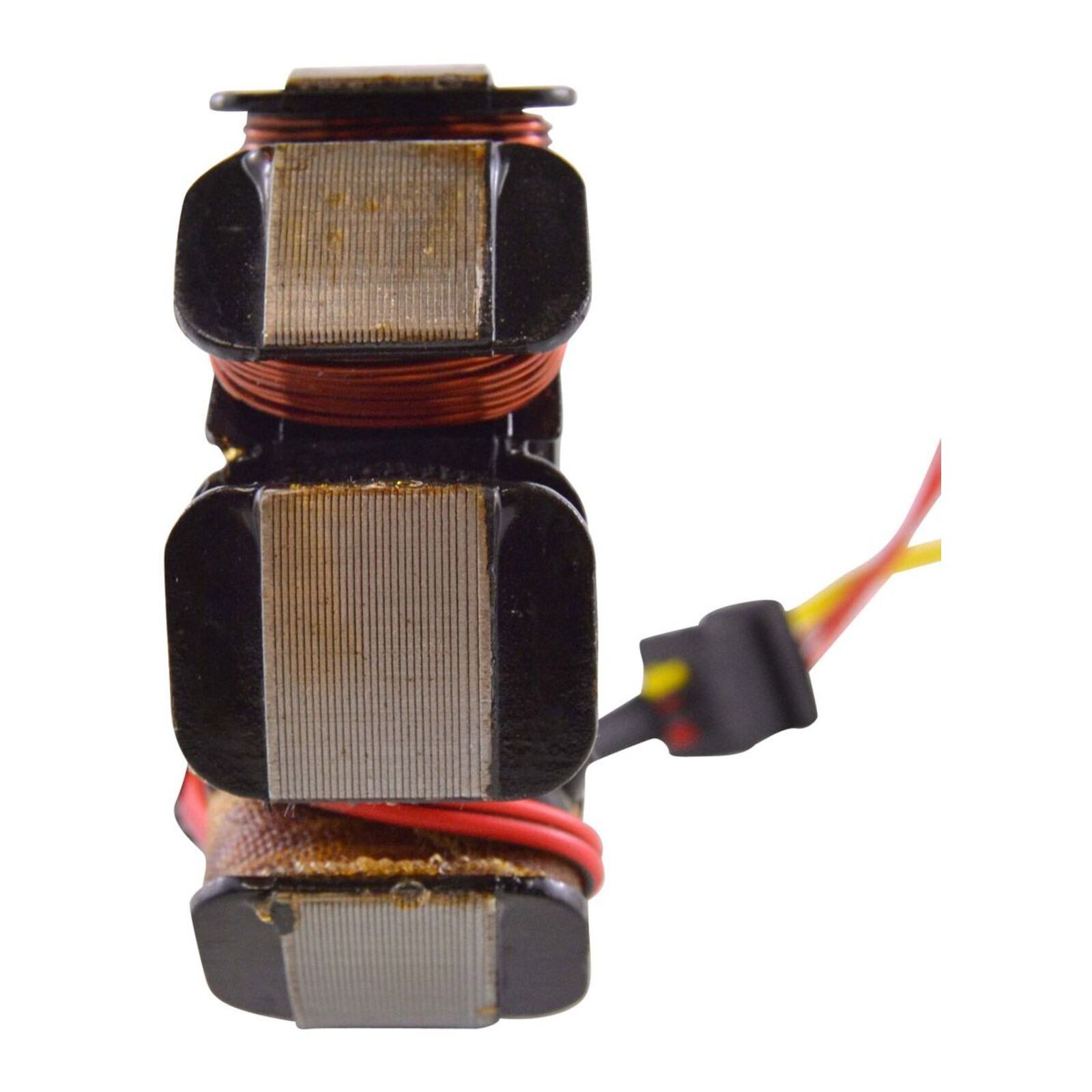

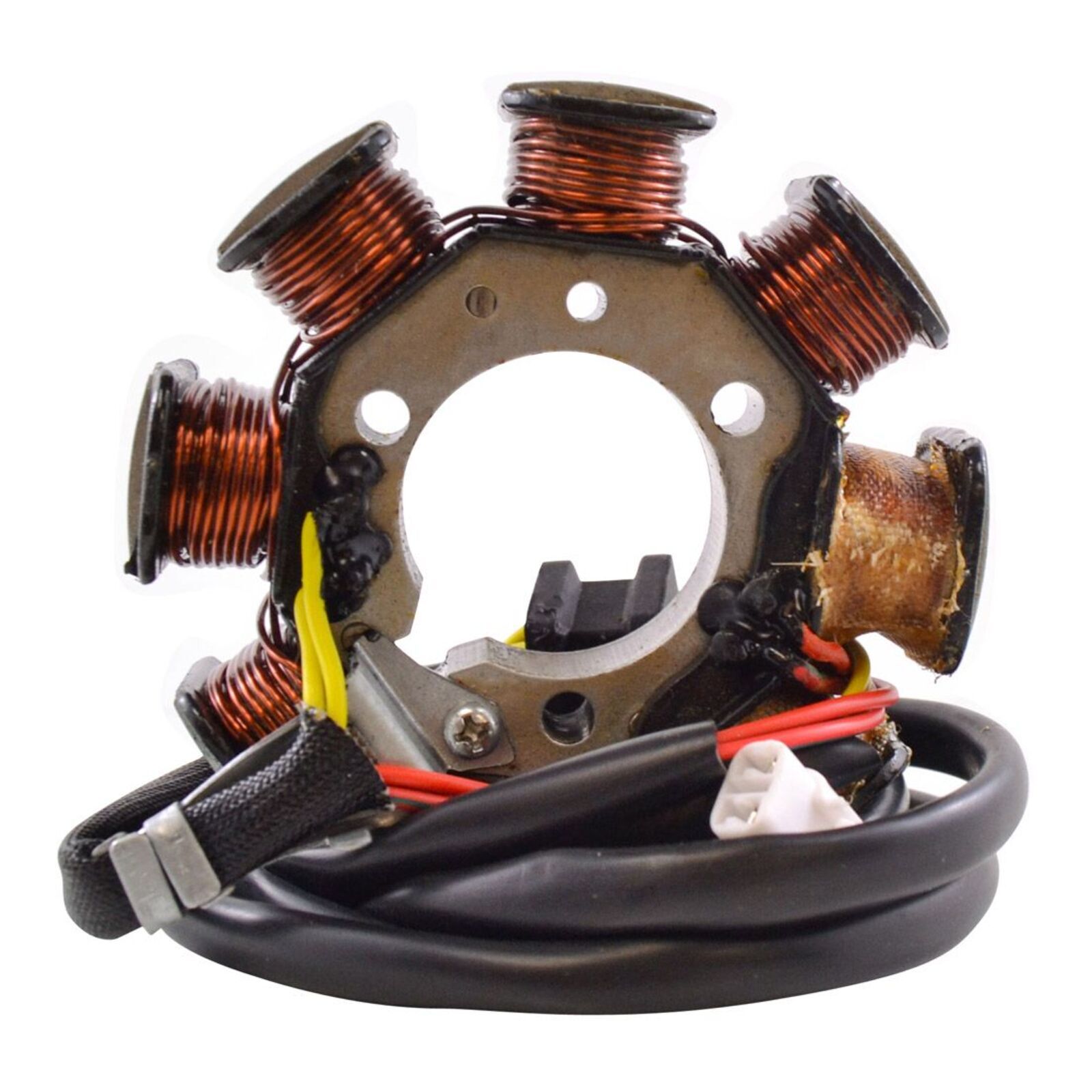

Stator Kawasaki KLF220 Bayou '88-'95 (RM01318)
$479.99
SKU: RMS01318
In Store
Unavailable
In Warehouse
1 in Stock
Calculate Shipping
Standard Shipping FREE - $0.00
No insurance cover
No insurance cover
Standard Shipping - $0.00
No insurance cover
No insurance cover
Standard Shipping + Insurance - $21.95
Your order has cover [signature required]
Your order has cover [signature required]
Express Shipping - $30.00 (ETA: 2 days)
*additional freight costs may apply for 'bulky/heavy' items
*additional freight costs may apply for 'bulky/heavy' items
Express Shipping + Insurance - $35.00 (ETA: 2 days)
Order once processed is freighted via express service and covered
Order once processed is freighted via express service and covered
Pick Up (Collecting Instore) - $0.00
Once Your Order has been processed and is ready for You to collect, You will receive an email/text notification (Only available for customers who can collect from our Helensvale Store)
Once Your Order has been processed and is ready for You to collect, You will receive an email/text notification (Only available for customers who can collect from our Helensvale Store)
Direct replacement for your original unit.
- Plug-and-play direct fit for easy installation.
- Constructed with the highest grade lamination materials.
- Equipped with highest grade copper windings resistant to 200 degrees Celsius.

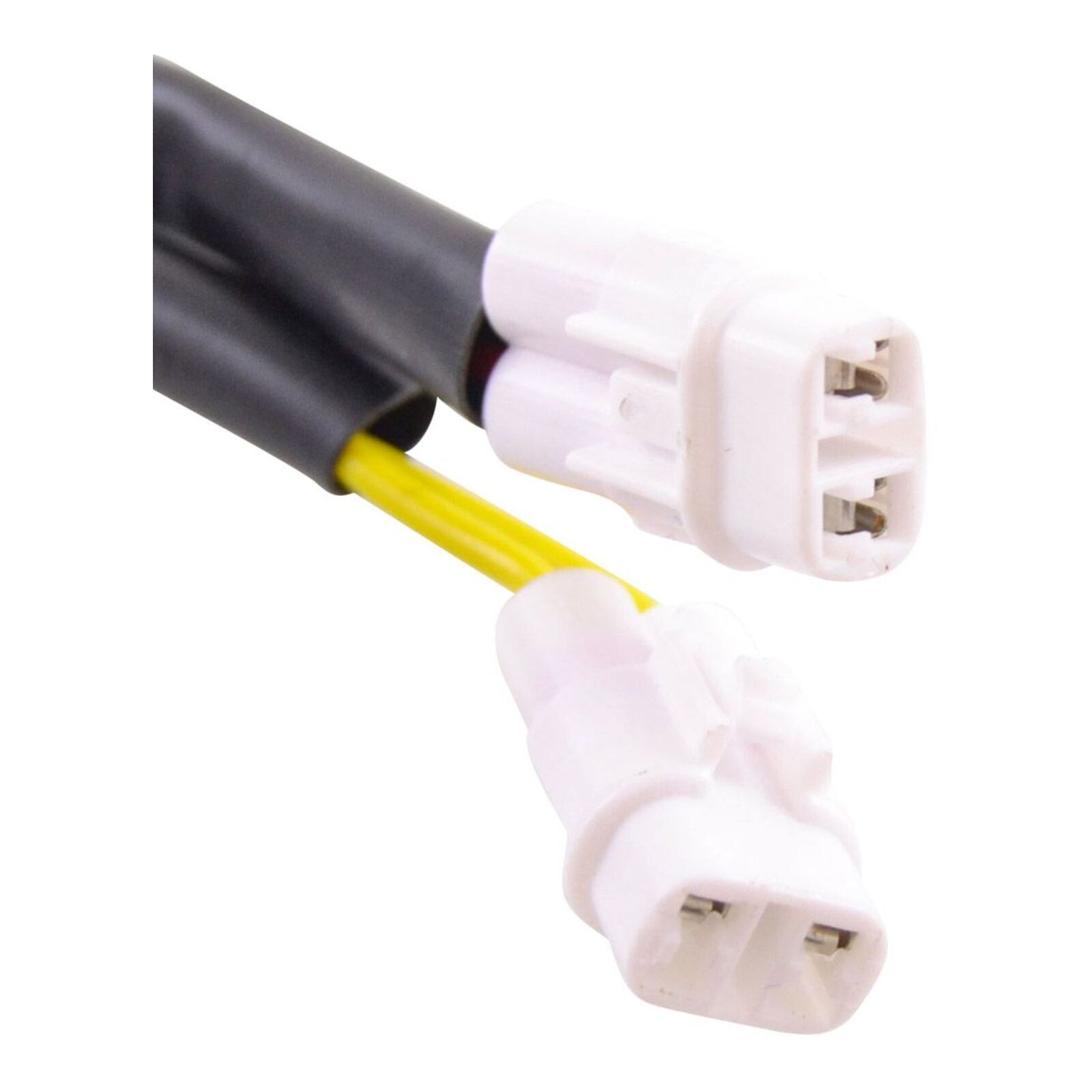

- Includes connector.
- Includes rubber grommet.
- All products are tested before shipping.
Specifications:
Dimensions:
- Interior diameter: 34mm
- Exterior diameter: 92mm
- Thickness: 18mm
- Length of wires (stator to grommet): 100mm
- Length of wires (grommet to plug): 150mm and 900mm
Other Specifications:
- Number of wires: 4
- Number of plugs: 2
- Number of pins: 4
Wire to Wire Resistance:
- Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
- Source (Red to Black/Red): 140 ohms +/- 20%
(RMS01318)
| SKU | RMS01318 |
| Brand | RMSTATOR |
Description
Direct replacement for your original unit.
- Plug-and-play direct fit for easy installation.
- Constructed with the highest grade lamination materials.
- Equipped with highest grade copper windings resistant to 200 degrees Celsius.
- Includes connector.
- Includes rubber grommet.
- All products are tested before shipping.
Specifications:
Dimensions:
- Interior diameter: 34mm
- Exterior diameter: 92mm
- Thickness: 18mm
- Length of wires (stator to grommet): 100mm
- Length of wires (grommet to plug): 150mm and 900mm
Other Specifications:
- Number of wires: 4
- Number of plugs: 2
- Number of pins: 4
Wire to Wire Resistance:
- Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
- Source (Red to Black/Red): 140 ohms +/- 20%
Specifications
| SKU | RMS01318 |
| Brand | RMSTATOR |
