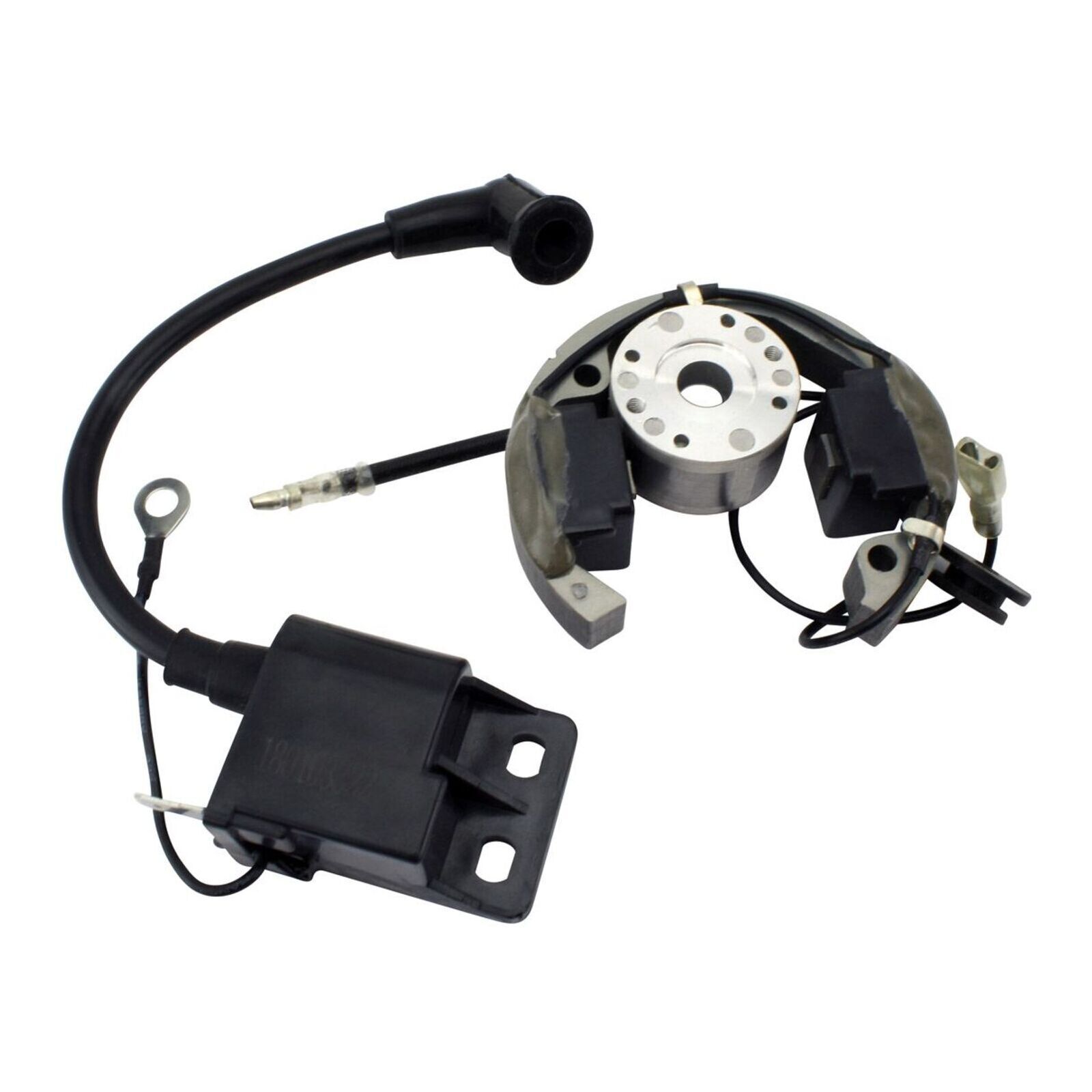

Brand new aftermarket stator + rotor + ignition coil. Direct replacement to your original unit.

• Plug-and-play direct fit easy installation

• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

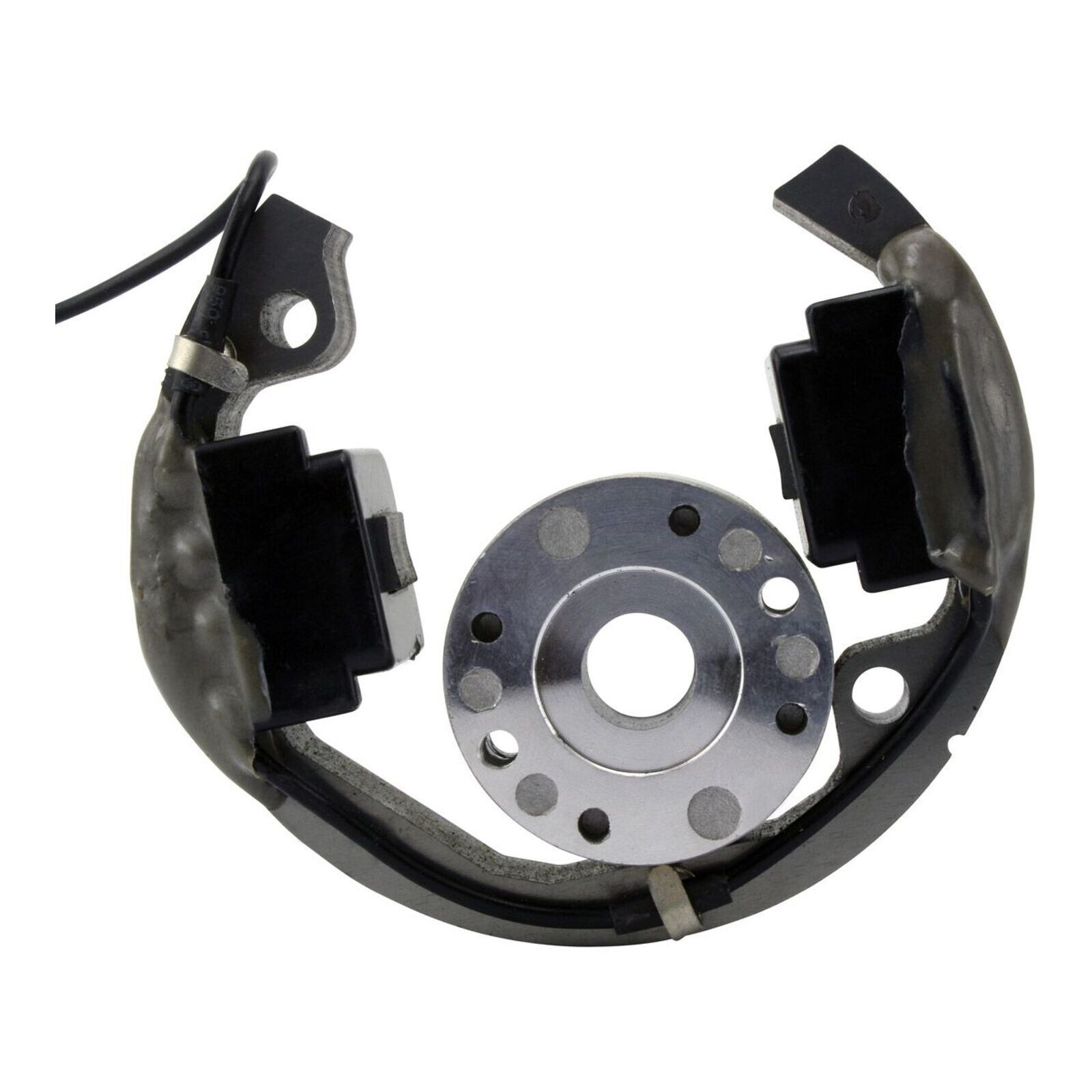

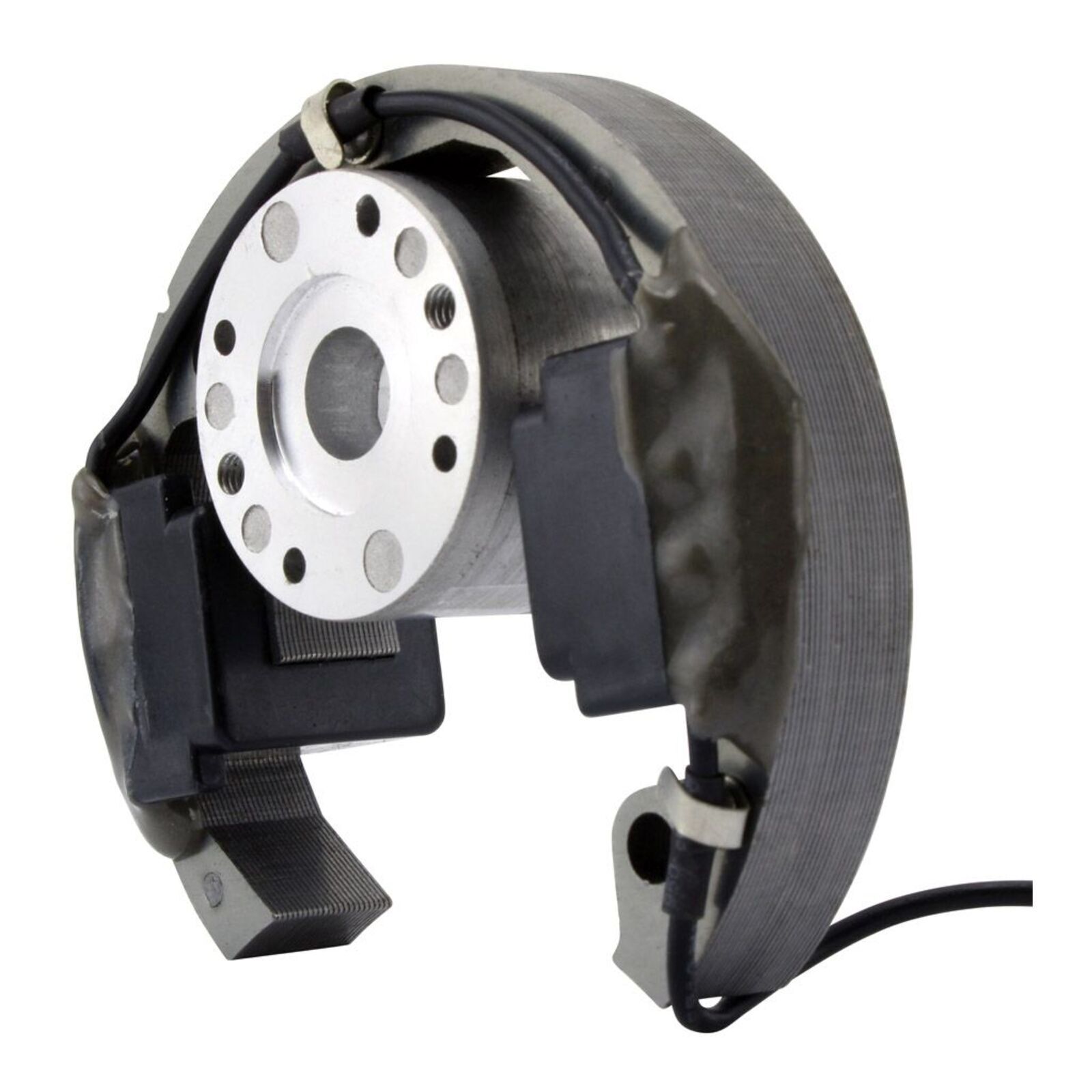

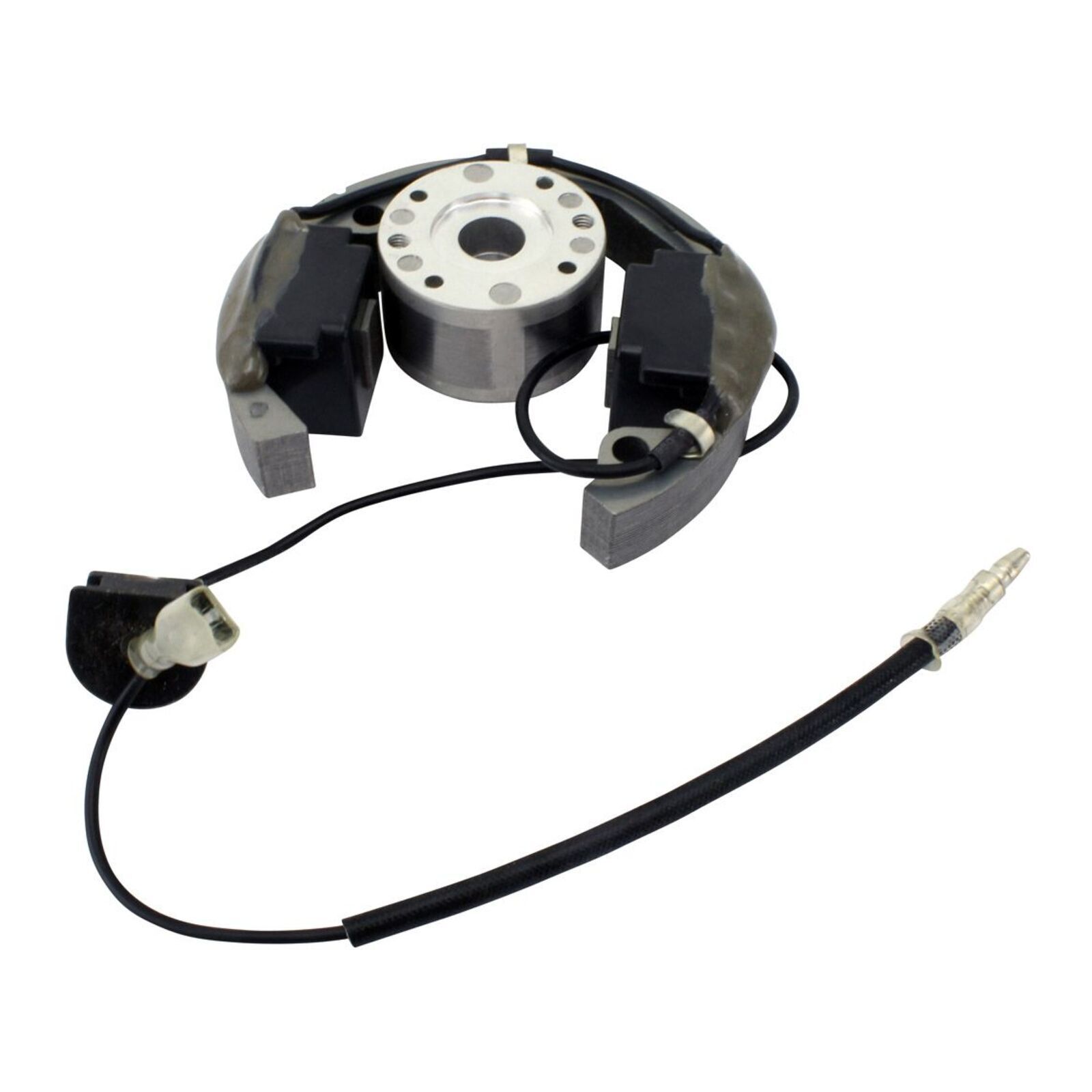

Stator :

• Highest grade of lamination materials

• Highest grade of copper winding resistant to 200 degrees Celsius

• Connector included

• Rubber grommet included

Specifications:

Stator Dimensions:

• Length of wires stator to grommet: 75 mm
• Length of wires grommet to plug: 148 mm

Other specifications:

• Number of wires: 2
• Number of plugs: 2

Alternator:

• Black to ground: 4.5 ohms ±20%

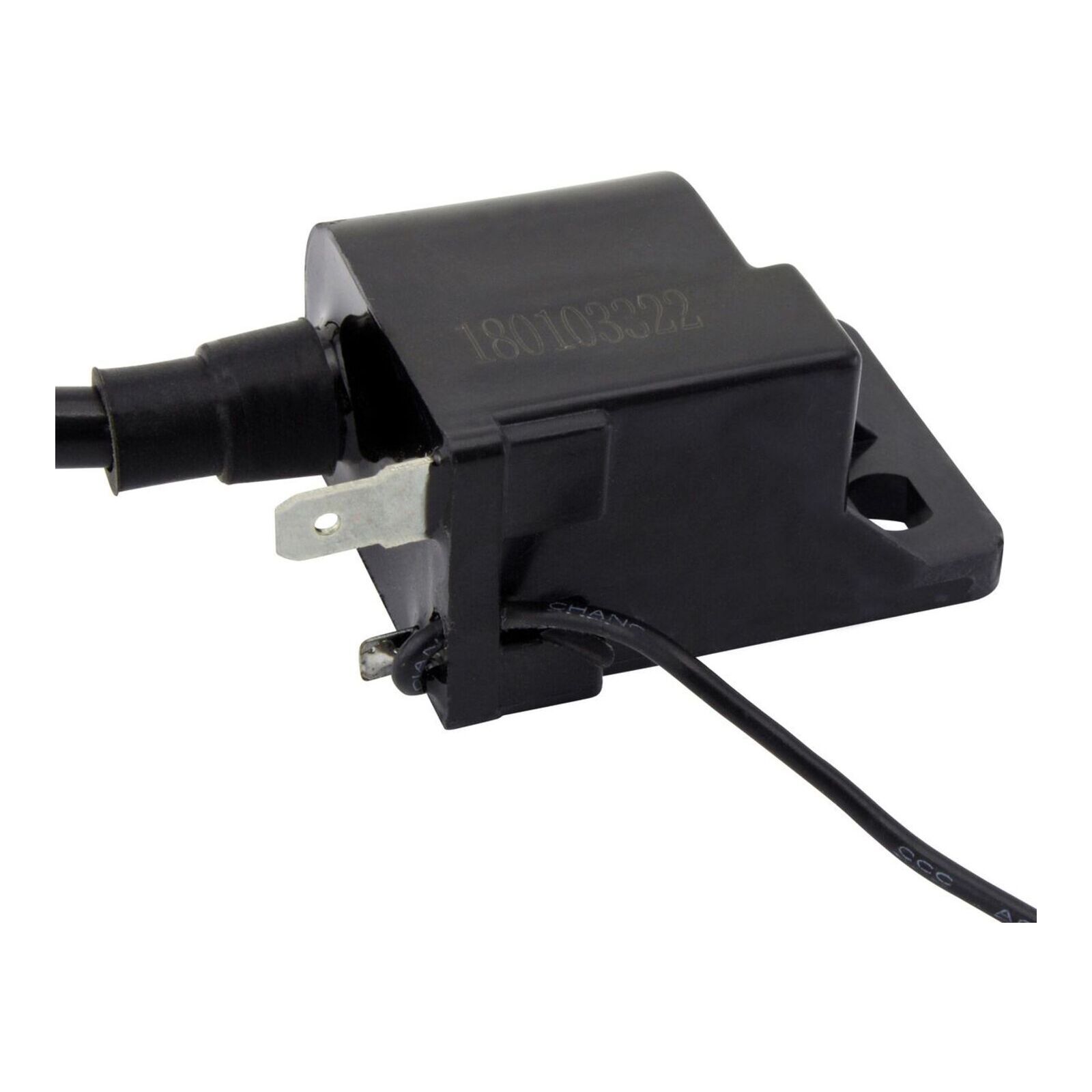

External Ignition Coil:

• Distance between fixation holes: 20 mm
• Wire Length: 51 mm
• Resistance: 6.1 ohms

Rotor Dimensions:

• Interior widest diameter: 12 mm
• Interior narrowest diameter: 12 mm
• Interior length: 19 mm
• Exterior Diameter: 36 mm
• Fixation holes centre to centre: 23 mm
