Re-install your original connector and grommet. Once your connector and grommet is re-installed our part becomes a plug-and-play unit direct fit and very easy to install.

Features:

• Higher grade of electric components.
• Highest grade of copper winding resistant to 200 degrees Celsius.
• All shipped products are tested.

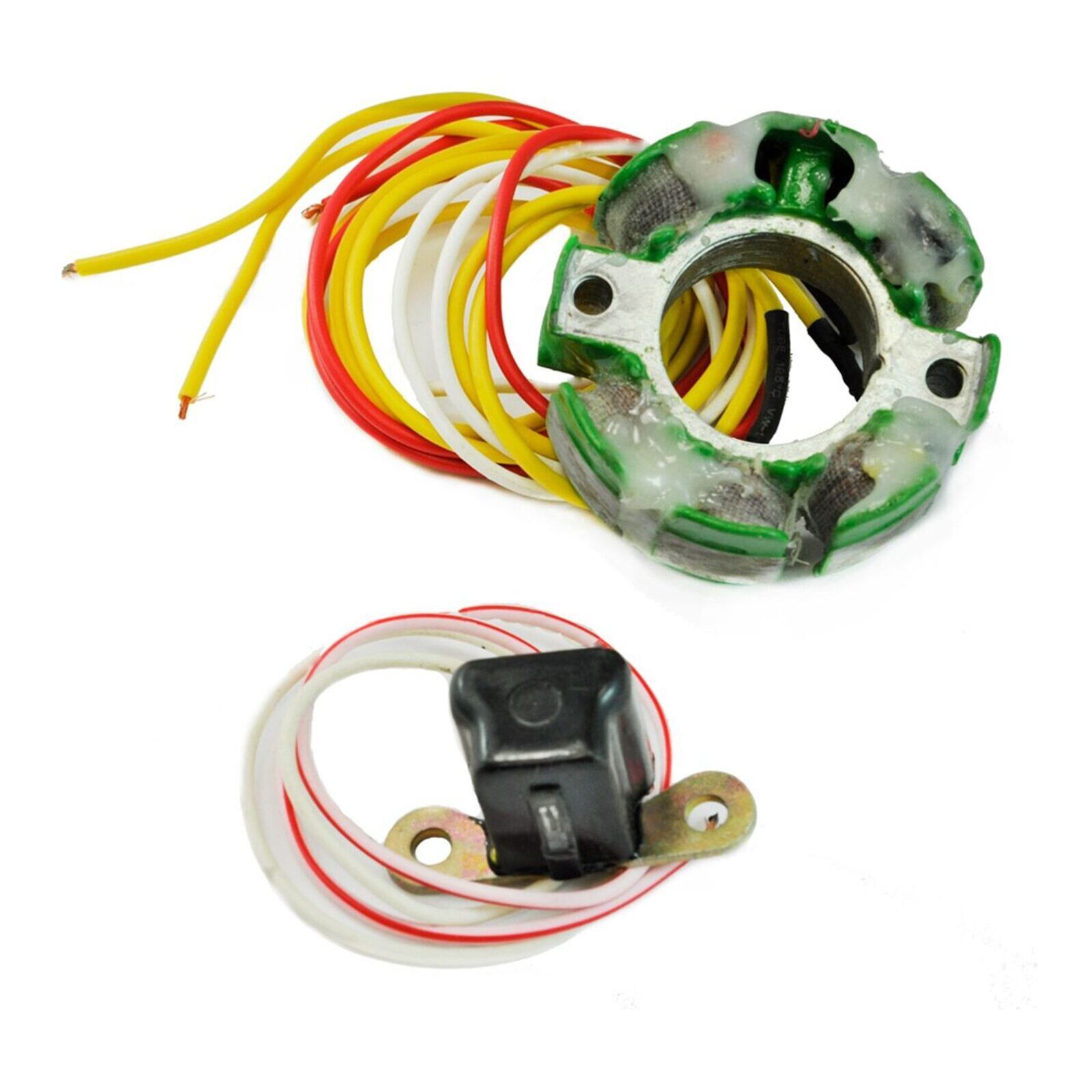

Dimensions - Stator:

• Interior diameter: 28mm
• Exterior diameter: 57mm
• Thickness: 15mm
• Length of wires (stator to terminals): 600mm

Other Specifications:

• Number of wires: 4
• Number of plugs: 0
• Number of terminals: 4

Wire-to-Wire Resistance:

• Source 1: Red to White = 28 ohms ± 20%
• Source 2: Yellow to Yellow = 0.4 ohms ± 20%

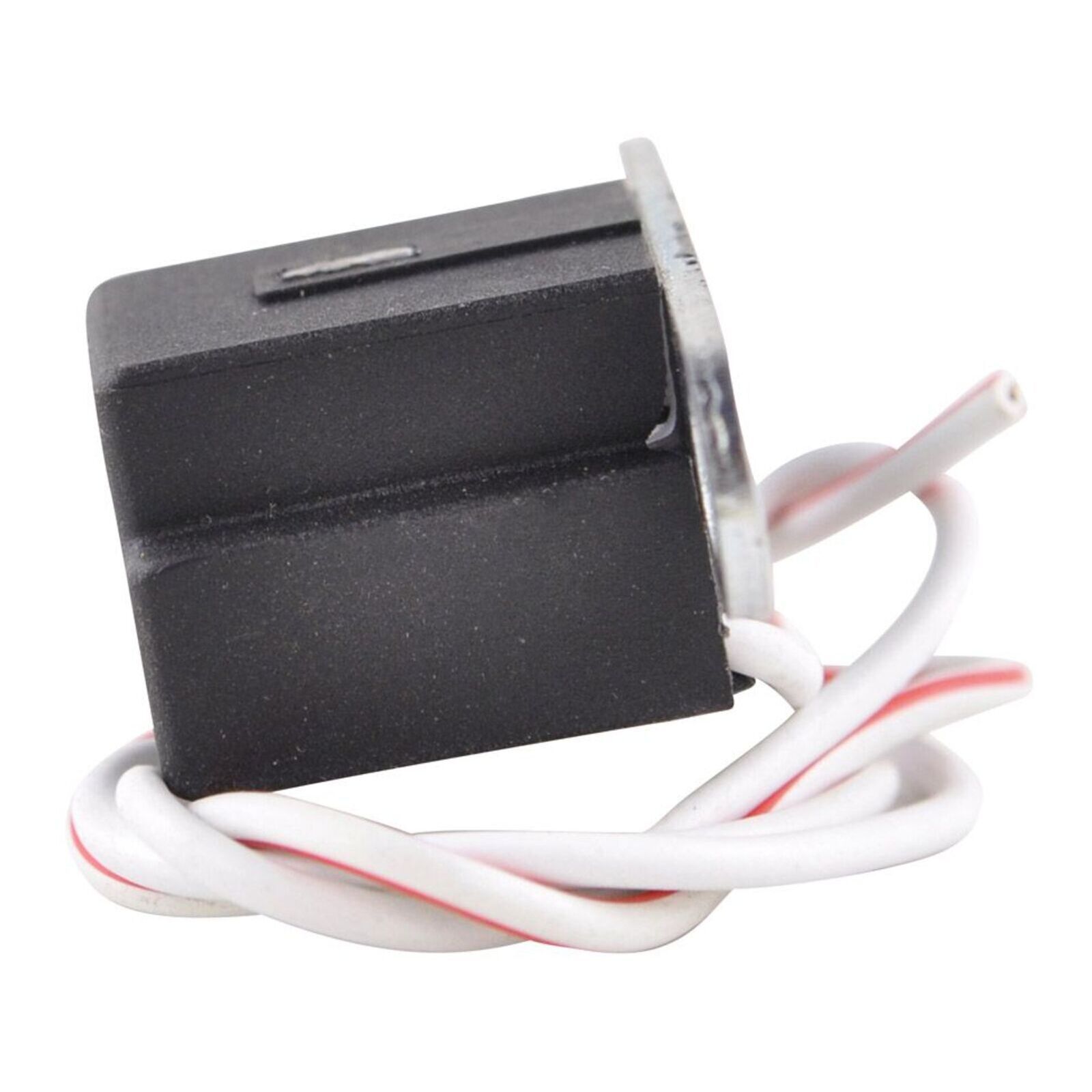

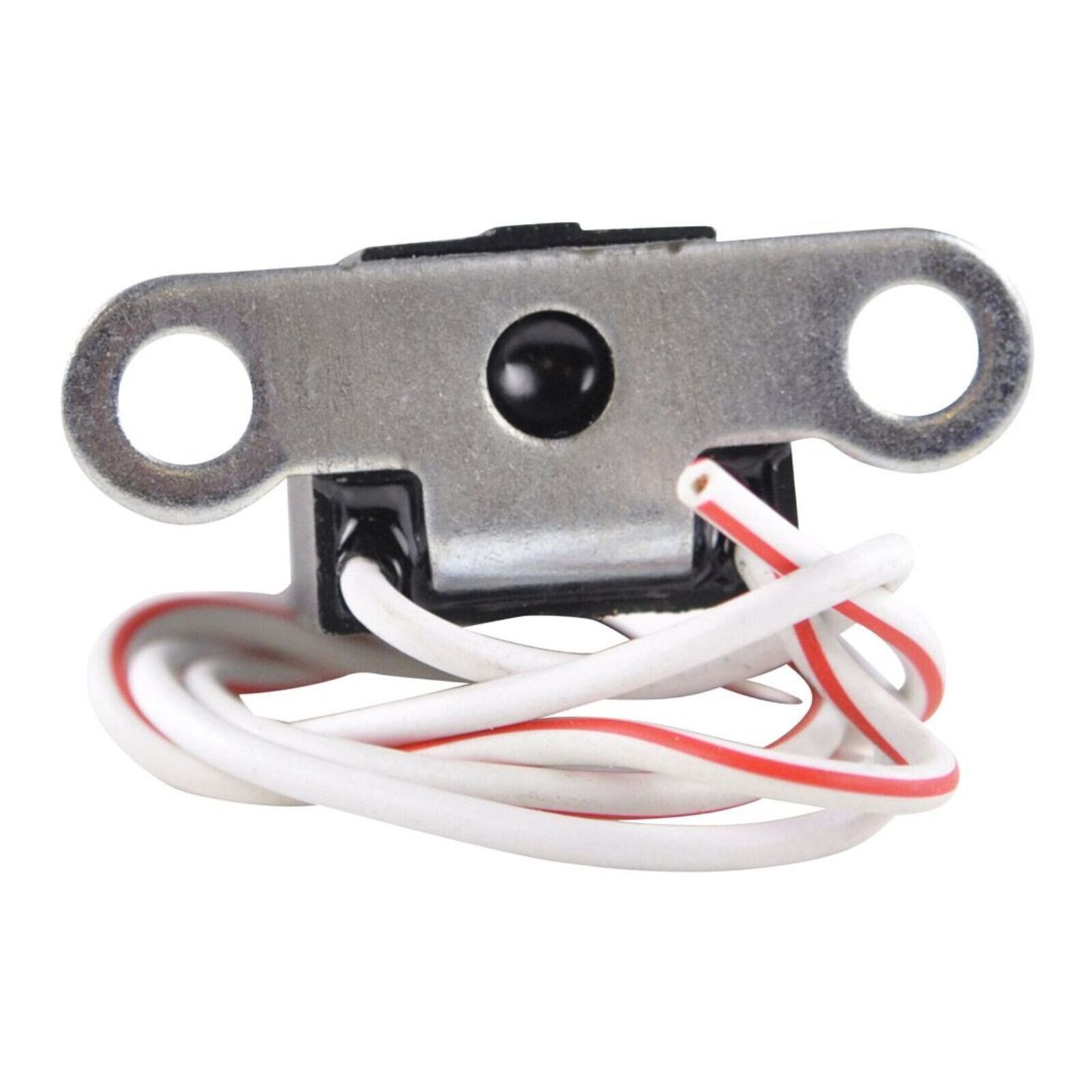

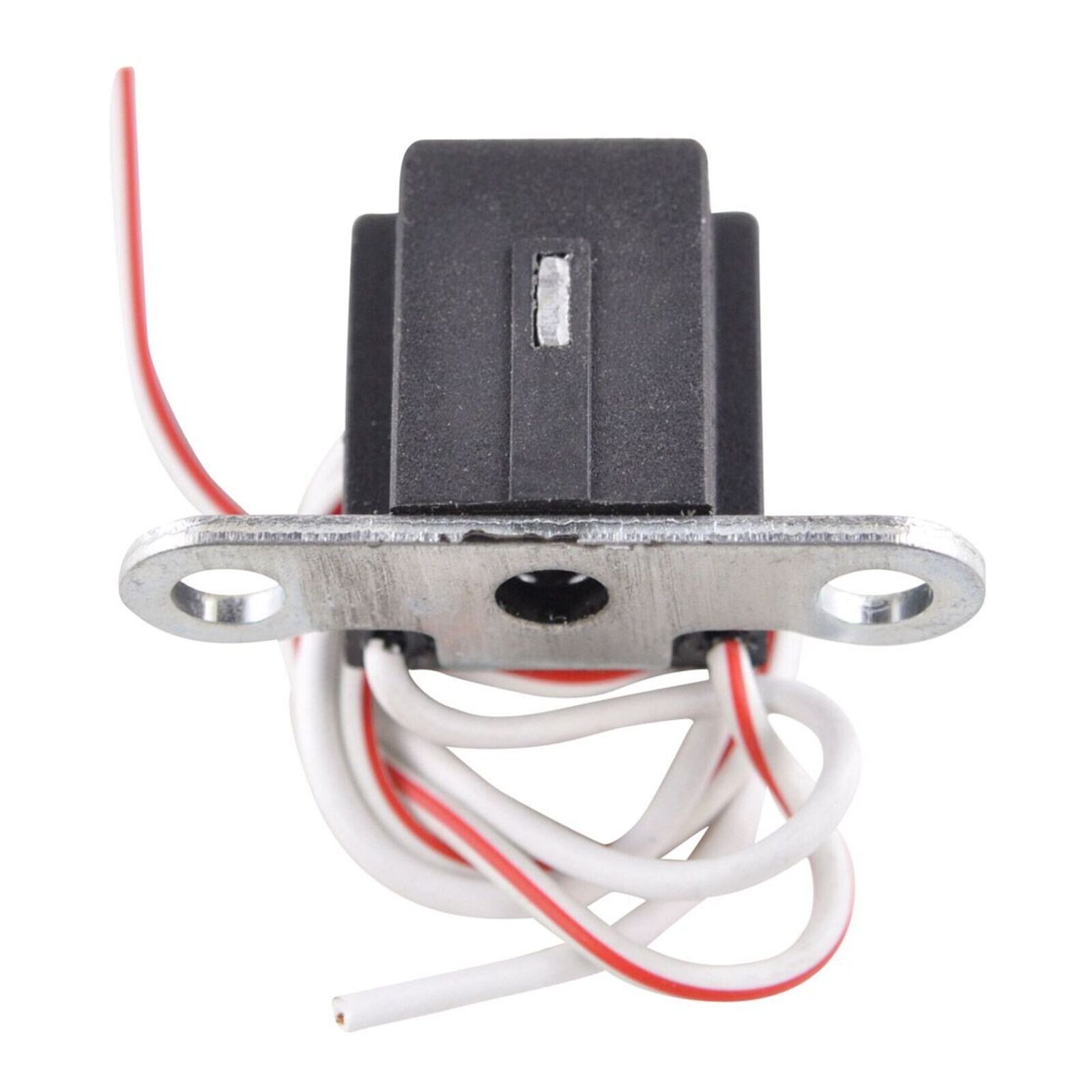

Dimensions - Pickup Pulsar Coil:

• Height: 25mm
• Length: 22mm
• Width: 18mm
• Bracket (centre to centre): 35mm

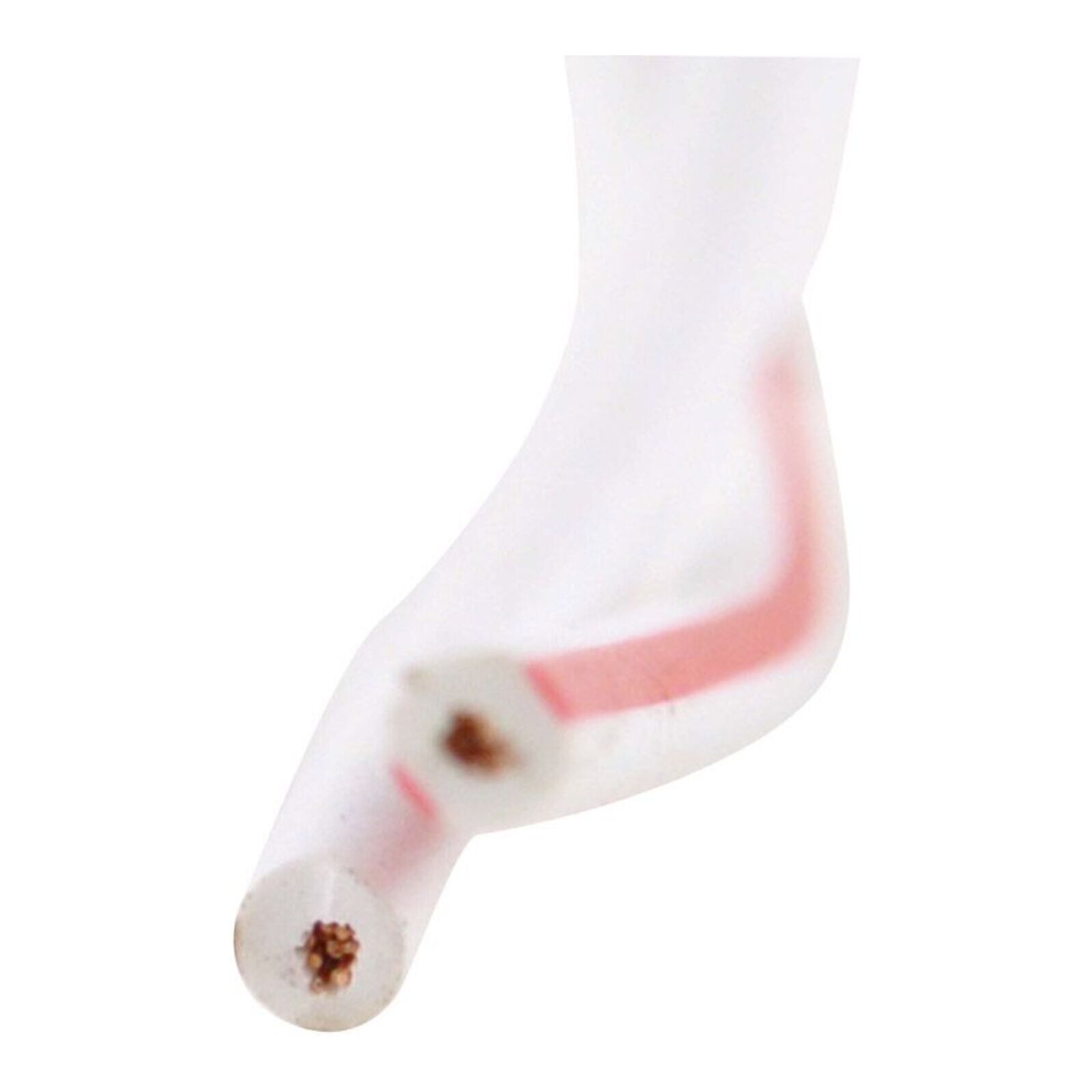

• Wires length: 90mm

Other Specifications:

• Number of wires: 2
• Number of pins: 2

Wire-to-Wire Resistance:

• Pink/Red to White: 100 ohms ± 20%
