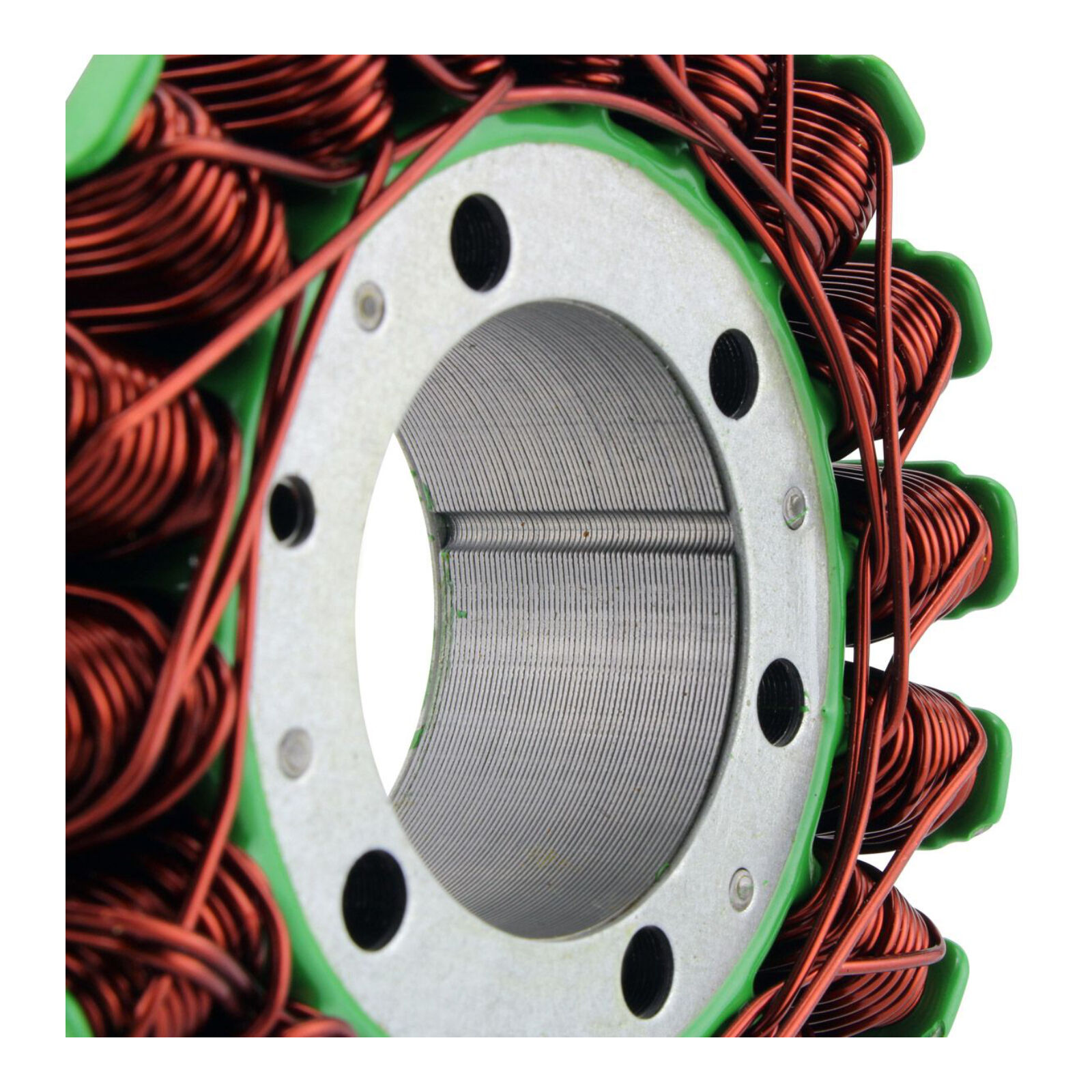

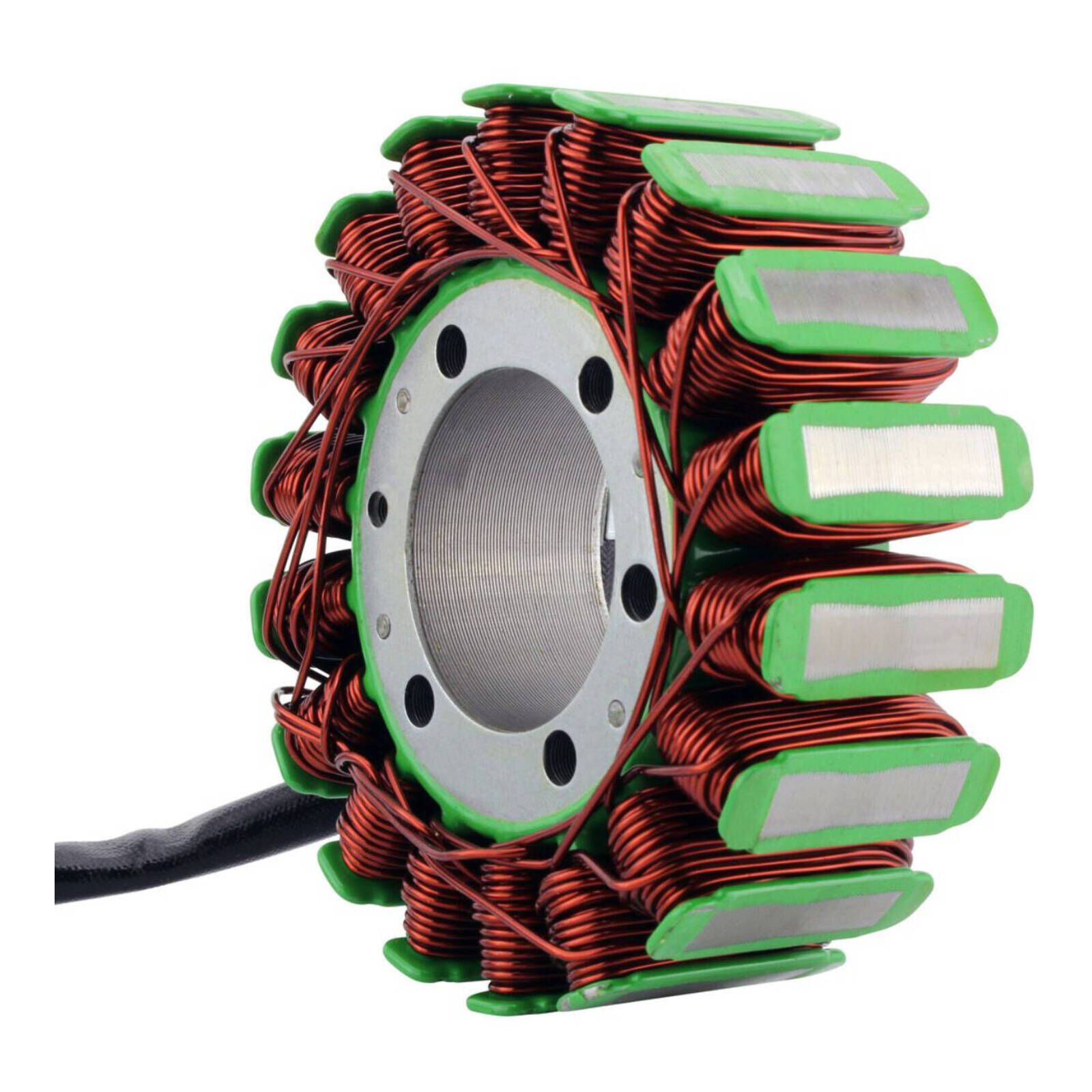

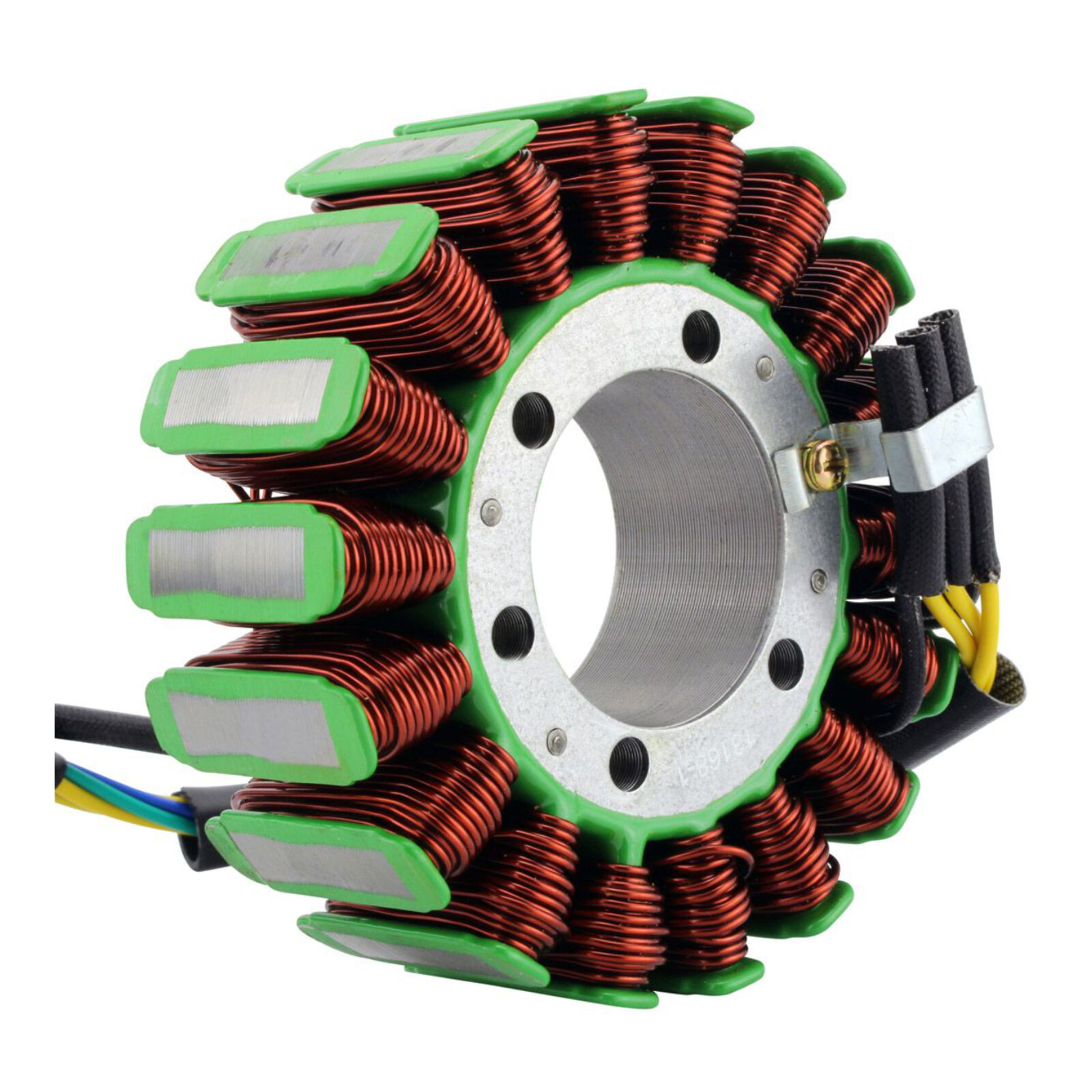

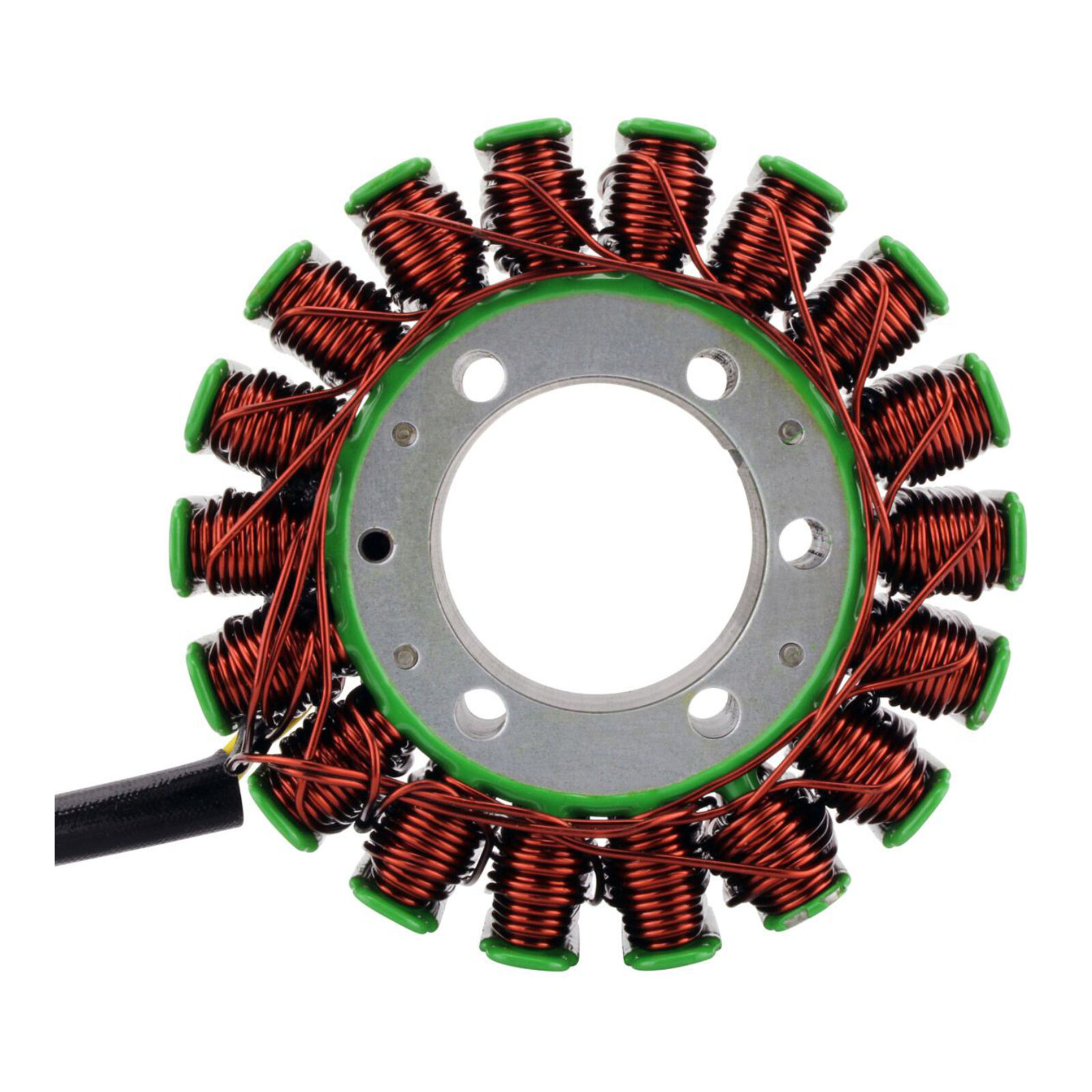

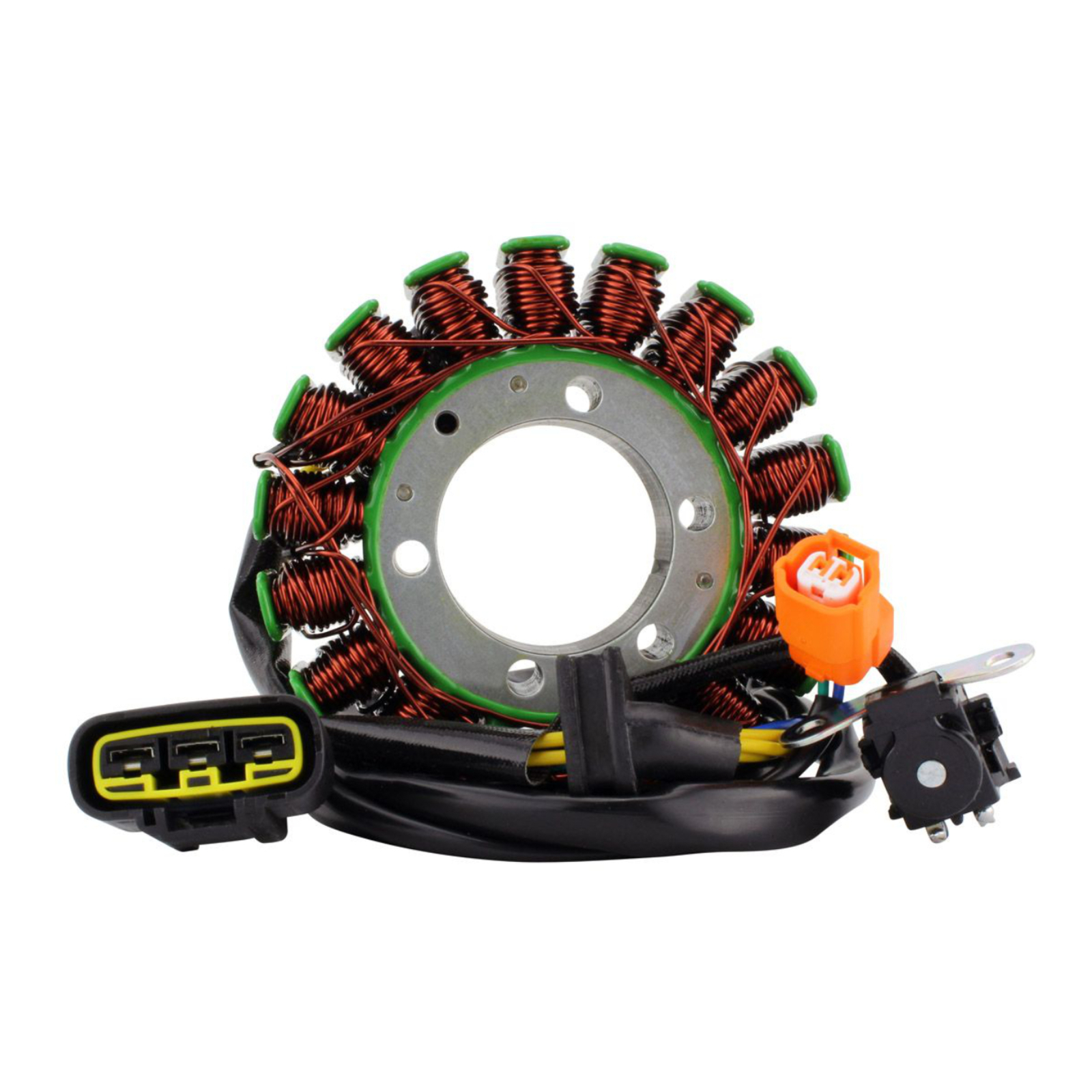

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 107 mm
• Thickness: 31 mm
• Length of wires stator to grommet: 120 mm
• Length of wires grommet to plug #1: 335 mm
• Length of wires grommet to plug #2: 855 mm
• Length of pickup coil's wire to grommet: 85 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Between each Yellow = 0.6 ohms +-20%
  • Pickup: Blue to Green = 235 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play direct fit easy installation
• Highest grade of lamination materials
• Highest grade of copper winding resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested
